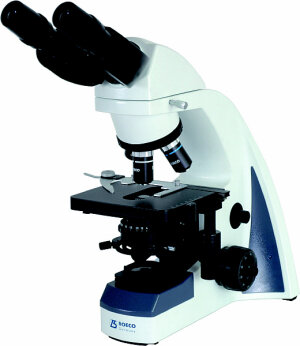

OUR STANDARD MICROSCOPE FOR SCIENTIFIC,MEDICAL AND EDUCATION NEEDS.
Art.No |
Model |
Head |
Objective type |
Objective Magnification |
Voltage |
BOE 1800.200 |
BM-180/SP |
Binocular,
Sliding |
Semi-plan-Achromatic |
4X, 10X, 40X, 100X (Oil) |
220 V |
|
|
|
|
|
|
BOE 1800.230 |
BM-180/T/SP |
Trinocular,
Sliding |
Semi-plan-Achromatic |
4X, 10X, 40X, 100X (Oil) |
220 V |
|
|
|
|
|
|
Specification: |
|
Magnification: |
40X- 1600X |
Optical Head: |
Sliding Binocular Head, Interpupillary Distance 55 – 75 mm |
Nosepiece: |
Quadruple revolving nosepiece |
Eyepiece: |
Pair Eyepiece WF 10X /18 mm Widefield Pair Eyepiece P 16X |
Objectives: |
BOECO Semi-plan Achromat DIN Objective 4x/0.10 BOECO Semi-plan Achromat DIN Objective 10x/0.25 BOECO Semi-plan Achromat DIN Objective 40x/0.65, spring loaded BOECO Semi-plan Achromat DIN Objective 100x/1.25, Oil, spring loaded |
Stage: |
Double layer mechanical specimen stage. 140 x 140 mm Travel area 75 x 50 mm, Right hand stage handle |
Focusing: |
Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 20 mm., Safety autofocus stop unit. |
Condenser: |
Abbè Brightfield condenser, n.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment |
Illumination: |
6V 20W Halogen, light intensity adjustable. |
Body /power: |
Sturdy body with supportive rubber and inbuilt power supply 110-240V |
Supplied with: |
Dust cover, blue + green filter, immersion oil, 1 spare halogen bulb and instruction manual |
Dimension: |
170(W) x 250(D) x 375(H) mm |
Weight: |
Netweight 7,65 kgs, Grossweight 9,5 kg |
Packing: |
Two styrofoam shelves in a cardboard box, 290(W)x330(D)x530(H) mm |
Accessories:
Art.No: |
Description: |
BOE 1800.200-LED |
Binocular Model BM-180/SP as above but with 9V/6W LED illumination and rechargeable battery |
|
